Spring return electric actuators are ideal for HVAC dampers and damped ventilation where a fail-safe, auto-return action is needed when power is removed. The following five products are selected for reliability, compatibility, and broad installation footprint. They suit homeowners upgrading residential systems, contractors servicing light commercial units, and engineers integrating retrofits with existing Honeywell, DuroZone, and similar dampers.
| Product | Brand | Type | Key Use |
|---|---|---|---|
| Replacement Damper Motor Actuator for Honeywell ARD ZD M847D | Retrozone | 2-wire spring return damper motor | Drop-in replacement for M847D series dampers |
| Valemo VDM10B, 24 VAC Spring Return Damper Motor | Valemo | 2-wire spring return | Drop-in replacement for M847D family |
| Valemo VDM10, 24 VAC Spring Return Damper Motor | Valemo | 2-wire spring return | General drop-in replacement, fixed 90-degree angle |
| Honeywell M847D-ZONE/U Replacement Motor | Honeywell | Spring-return damper actuator | Direct mounting to 7/16″ coupling dampers |
| Schneider Electric AG13B020 Tac Erie Spring Return Actuator | Schneider Electric | Spring return, two-position | General close-off actuator, direct mounting |
Replacement Damper Motor Actuator for Honeywell ARD ZD M847D
The Retrozone RZ3-1M is a 24 VAC, 2-wire spring-return damper motor designed as a drop-in replacement for Honeywell’s M847D series, including models M847D1004 and M847D1012. This motor is built to fit popular ARD and ZD dampers and other two-wire spring-return applications. It emphasizes durable gearing and a robust footprint to counter the thin OEM gear failures common in some older motors. Best for retrofits where an exact Honeywell footprint is required and direct compatibility matters.
Who it’s best for: technicians replacing failing M847D units, contractors upgrading legacy dampers, homeowners seeking a straightforward swap without re-wiring. Why selected: wide compatibility with M847D family and similar two-wire systems, combined with reinforced gears for longer life.
Caution: verify the damper’s footprint and ensure the 2-wire configuration matches your existing wiring to avoid mis-match in installation. Some installations may benefit from double-checking end stops and mounting orientation to maintain proper alignment.
Electric Micro Linear Actuator 12V 2″ Stroke
The USLICCX 12V micro linear actuator provides a 2-inch stroke, 12V DC operation, and a compact, IP54-rated design with a 0.6 inch/sec speed. It features built-in end-limit switches to automatically stop at the end of travel and a protective, low-noise profile (<55 dB). While marketed as a general-purpose actuator, its compact form and end-limit feature make it suitable for small damper or venting applications in tight spaces.
Who it’s best for: DIY enthusiasts and small installations where space is limited and a precise, short-stroke actuator is needed. Why selected: reliable limit-switch integration and a sealed build for light, indoor use.
Limitation: this actuator is a general-purpose unit and may require additional mounting hardware or linkage to suit specific damper assemblies. Ensure compatibility with your damper’s attachment method before purchasing.
Baomain BM-0530B 12V Solenoid Push-Pull
The Baomain BM-0530B is a 12V DC solenoid with a 10 mm stroke and 5N force, offering a push-pull mechanism with a spring return. It is open-frame to aid heat dissipation and inspection. Designed for intermittent use, it emphasizes safe operation with explicit cautions about continuous power application and temperature rise. This unit is suitable for precise actuation in automated systems where a linear, push-pull action is required in proximity to a 12V supply.
Who it’s best for: projects needing discrete push-pull motion in a compact 12V form factor, particularly where heat management is a concern. Why selected: simple, compact, and easy to wire into low-power circuits.
Caution: intended for intermittent use only. Prolonged continuous energization can cause significant temperature rise; power should be disconnected after short operation windows to extend life.
Valemo VDM10B 24 VAC Spring Return Damper Motor
The Valemo VDM10B is a 24 VAC, 2-wire spring-return damper motor designed as a drop-in replacement for Honeywell M847D and related ARD/ZD dampers, including DuroZone and other 2-wire actuators. It features adjustable operating angles and is backed by a multi-year seller history as a trusted choice. The actuator is compatible with many 2-wire damper systems, offering a straightforward install for both homeowners and contractors.
Who it’s best for: installers replacing M847D-based units or matching two-wire dampers that require a flexible angle option. Why selected: clear compatibility with Honeywell and older dampers, plus an adjustable angle for partial close or air bleed needs.
Limitation: confirm the exact angle range required for your damper; some installations may default to a fixed stance, so verify adjustment capabilities before finalizing mounting.
Valemo VDM10 24 VAC Spring Return Damper Motor
The Valemo VDM10 is a 24 VAC, 2-wire spring return damper actuator designed as a drop-in replacement for Honeywell’s M847D and other 2-wire damper motors. It is positioned as a long-standing, reliable option for homeowners and contractors, with a standard 90-degree operating angle to suit many common damper configurations. It’s marketed as a trusted choice with a broad compatibility profile for legacy dampers.
Who it’s best for: users seeking a straightforward, compatible replacement for a wide range of two-wire dampers. Why selected: proven compatibility and easy installation in many 2-wire HVAC systems.
Limitation: verify the damper’s mechanical stop and linkage compatibility; mis-match in geometry can affect travel and closure performance.
Johnson Controls M9102-AGA-3S Series Non-Spring-Return Actuator
The Johnson Controls M9102-AGA-3S is a non-spring-return actuator designed for two-position zone applications. It features short travel time and low audible noise, with synchronous drive for consistent rotation timing regardless of load. This unit is suitable where a vent damper or zone valve requires controlled positioning rather than automatic return upon power loss.
Who it’s best for: systems requiring precise, two-position control without a spring return, often in zones with reset or manual override needs. Why selected: reliable two-position actuation and fast travel time for rapid zone changes.
Caution: since it is non-spring-return, ensure your safety and fail-safe requirements are met with a separate spring or mechanism if needed for automatic fail-safe operations.

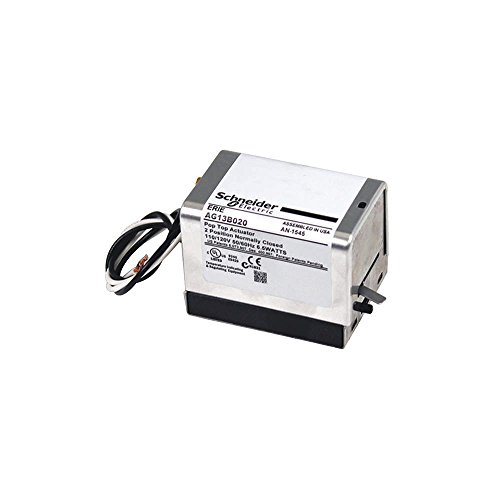

Schneider Electric AG13B020 Tac Erie Spring Return Actuator
The Schneider Electric AG13B020 Tac Erie is a spring-return two-position actuator designed for general close-off applications. It mounts directly onto the actuator body without complex linkages or calibration, simplifying installation. It is suitable for duct and damper control where a crisp spring-backed return is required in a compact form factor.
Who it’s best for: projects needing a simple, direct-mount spring-return actuator with straightforward setup. Why selected: direct mounting and straightforward calibration reduce installation time.
Caution: verify voltage compatibility and ensure the actuator’s mounting footprint matches your damper body to avoid misalignment or mechanical interference.
Buying Guide: Key Considerations For Spring Return Actuators
- Voltage and wiring: Most HVAC dampers use 24 VAC or 12 V DC; confirm your system’s supply and wire type (2-wire vs. multiple conductors).
- Torque and travel: Match actuator torque and angular travel to your damper’s required range. Over-torque can damage dampers; under-torque can leave dampers partially closed.
- Footprint and mounting: Ensure the actuator’s footprint, shaft size, and mounting method align with your damper model. Drop-in replacements save time; mismatches require adapters.
- Spring return behavior: Decide if you need a 2-wire spring-return or a non-spring, two-position actuator. Spring return is critical for fail-safe operation on power loss.
- Durability and environment: Consider IP rating for dust/water exposure and metal gears vs. plastic components for longevity in your environment.
- Warranty and service: Choose actuators with solid warranties and a track record of long-term availability to reduce lifecycle costs.
Frequently Asked Questions
- What is a spring return actuator? A device that automatically returns to its default position (usually closed) when power is removed, ensuring fail-safe operation in HVAC dampers.
- Can I replace a damper actuator with a different brand? Yes, if the replacement matches the damper’s footprint, voltage, torque, and travel requirements. Verify compatibility before purchasing.
- What does “2-wire” mean for actuators? It means the actuator uses two electrical connections to power and drive the motor; some installations require a separate control signal, depending on the system.
- What is the difference between spring-return and non-spring actuators? Spring-return actuators automatically revert to a default position when power is cut, while non-spring actuators require another mechanism to return to a default state.
- How do I choose the right actuator for an old damper? Check the damper’s model, shaft size, mounting pattern, required travel angle, and the available voltage. Prefer drop-in replacements when possible.
- Are these actuators suitable for commercial HVAC? Many are designed for light to mid-duty residential and small commercial dampers; verify torque and duty cycle for high-demand environments.
