Answering the need for precise airflow control in rectangular duct systems, these five dampers represent practical options for professionals and DIYers alike. The selections cover automatic and manual dampers, versatile mounting, and compatibility with common rectangular ducts. Each entry is best for a specific scenario—whether you prioritize automatic control, ease of installation, or durable construction. Use this guide to compare features and choose the damper that fits your system and maintenance preferences.
| Product | Brand | Type | Best For |
|---|---|---|---|
| ZD14X8TZ – 24V Parallel Blade | Honeywell | Automatic Rectangular Damper | Automatic zoning and precise 14×8 control |
| Rectangular Fire Damper Static Vertical | Dayton | Fire Damper (Rectangular) | Fire-rated zoning and safety |
| ZD10X10TZ – 24V Automatic Rectangular Damper | Honeywell | Automatic Rectangular Damper | Square 10×10 duct applications |
| Round Side Take Off with Damper (12 STO) | Generic | Rectangular to Round Duct Adapter with Damper | Flexible duct branching and airflow control |
| ZD14X14TZ – Rectangular Damper | Honeywell | Automatic Rectangular Damper | Large rectangular ducts and versatile mounting |
Honeywell ZD14X8TZ 24V Parallel Blade Damper
Overview: A 24V automatic rectangular damper sized 14×8 inches, designed for parallel blade operation. This model is suited for zoning applications where automatic airflow regulation is essential. Best for mechanical rooms or systems requiring quick, precise damper responses.
- Best for automatic zoning and precise control in 14×8 rectangles.
- Robust parallel blade design minimizes leakage and improves balance.
Best for: HVAC systems that need reliable automatic control and compact footprint. Why selected: It combines automatic operation with a compact size, making it a popular choice for retrofit projects. Caution: Verify mounting orientation and available space for 14×8 installation.
Rectangular Fire Damper Static Vertical
Overview: This is a fire-rated damper suitable for rectangular ducts, intended for vertical installation. It prioritizes fire safety and barrier integrity in commercial or multi-zone systems. Best for applications where fire containment is a priority and ductwork runs vertically.
- Best for fire-rated installations and vertical duct runs.
- Made in the United States, signaling local manufacturing support.
Best for: Buildings requiring fire protection in rectangular duct layouts. Why selected: Fire dampers are essential for code compliance in certain spaces. Caution: Check local code requirements and compatibility with existing duct dimensions beyond the listed model.
Honeywell ZD10X10TZ 24V Automatic Rectangular Damper
Overview: This 24V automatic rectangular damper measures 10×10 inches, offering reliable automatic control for square rectangular ducts. It is positioned as a strong choice for zoning schemes needing a compact yet capable damper.
- Best for 10×10 duct sections needing automatic control.
- Parallel blade design improves leakage performance.
Best for: Facilities with square duct configurations and automatic dampers. Why selected: It provides a compact, reliable automatic option for common 10×10 square ducts. Caution: Confirm power supply availability for 24V operation in the equipment room.
Round Side Take Off With Damper For HVAC Connections
Overview: A versatile HVAC connection component featuring a round side take-off with an integrated damper. Designed to bridge rectangular ductwork to round duct systems with adjustable airflow control. Best for flexible duct layouts and balance optimization in mixed duct systems.
- Best for creating branch connections from rectangular to round ducts with airflow control.
- Durable galvanized steel construction resists corrosion.
Best for: Projects needing a seamless rectangular-to-round transition with damped control. Why selected: It adds versatility to duct layouts while enabling precise balancing. Caution: Check compatibility with existing duct sizes and round take-off fittings.

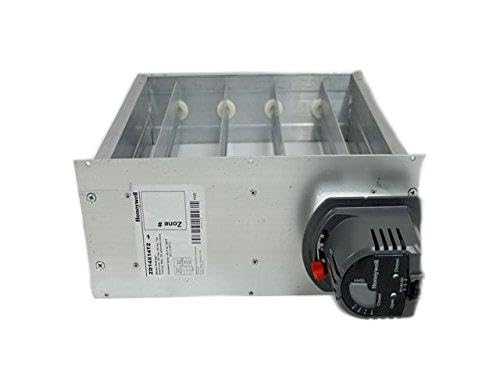

Honeywell Rectangular Damper ZD14X14TZ
Overview: A 24V automatic rectangular damper sized for larger 14×14 inch ducts. The model supports mounting in various orientations and emphasizes low leakage with a parallel blade arrangement. Best for mid-to-large rectangular duct sections requiring flexible installation.
- Best for larger rectangular ducts in vertical or side mounting.
- Parallel blade design for reduced leakage and better balance.
Best for: Bigger duct runs where placement flexibility and low leakage matter most. Why selected: Combines reliable automatic control with a larger footprint, suitable for multi-zone systems. Caution: Ensure sufficient clearance for mounting side or bottom configurations.
Buying Guide
What size should you choose?
- Measure the duct cross-section precisely and match the damper dimensions. A tight fit reduces leakage and improves control.
- Consider future changes to your ductwork; choosing a slightly larger but compatible model may ease upgrades.
Automatic vs. manual dampers: which fits your system?
- Automatic dampers offer responsive, zone-based control aligned with HVAC thermostats or building management systems.
- Manual dampers are simple, cost-effective, and reliable where automation isn’t needed or budget is constrained.
Material and build quality: what to expect?
- Look for parallel blade designs for lower leakage and better airflow control.
- Galvanized steel or durable metals improve longevity in challenging environments.
Installation considerations: orientation and mounting?
- Many dampers support multiple mounting orientations; confirm whether your space allows bottom, side, or top mounting.
- Check clearance for actuator access if choosing an automatic damper.
Compatibility with existing ductwork
- Ensure the damper’s port size matches your rectangular duct dimensions (for example, 10×10 or 14×14 inches).
- Verify any adapters or transition pieces needed for mixed rectangular-to-round systems.
FAQ
- What is a rectangular damper used for in HVAC systems? Answer: It regulates airflow within rectangular ducts, enabling zoning, balancing, and energy efficiency.
- Are automatic dampers worth the extra cost? Answer: They are beneficial for systems requiring precise, automated control across zones, reducing manual adjustments.
- Can dampers be installed in any orientation? Answer: Many models allow multiple mounting orientations, but always check the product specifics.
- What maintenance do these dampers require? Answer: Routine inspection for leakage, actuator operation (if present), and corrosion checks on metal components.
- How do I determine the correct damper size? Answer: Match the damper cross-section to the duct size (e.g., 14×8, 10×10) and consider future expansion needs.
- Do fire dampers restrict air flow? Answer: They are designed to maintain safety during fire events, and their primary function is to block smoke and flames, not to regulate normal airflow.
