If you’re upgrading a dust collection or HVAC ducting system, you want long radius elbows that reduce resistance and keep airflow steady. This guide highlights five top long-radius elbows from Amazon, ideal for industrial dust collection, HVAC runs, or renovation projects. Each option balances material strength, compatibility, and ease of installation, helping you pick the best fit for your setup. The buyers best suited for each product include shop owners, contractors, DIY enthusiasts, and HVAC technicians seeking durable, easy-to-install bends with a wider turning radius.
Summary of selected products
| Product | Best For | Notes |
|---|---|---|
| 6″ X 90 – Dust Collection Elbow (Long Radius) 20 Ga. Galvanized Steel | Industrial dust collection lines | Heavy-duty 20 gauge galvanized steel |
| 4″ X 90 – Dust Collection Elbow (Long Radius) 20 Ga. Galvanized Steel | Smaller duct runs | Same construction as 6″ with 4″ size |
| US Duct G6169 – 4″ 90 Deg Industrial Dust Collection Long Radius Elbow | Budget-friendly dust collection | Long radius design |
| 4″ SpeediChannel 90-De Long Radius Bend (Natural) | Modular channel systems | Long radius bend, natural finish |
| DiversiTech 230-LFB4 Speedy Channel 90 Degree Long Flat Elbow, 4″ Size | Chopper/large-radius applications | Ivory color, wide-radius application |
6″ X 90 – Dust Collection Elbow (Long Radius) 20 Ga. Galvanized Steel
This elbow uses heavy-duty galvanized steel and a 20-gauge thickness, making it durable for standard industrial ducting. Its long-radius design reduces turbulence and pressure loss compared with sharp 90-degree bends, improving overall system efficiency. Best for larger dust-collection lines where rigidity and corrosion resistance matter. Limitations include heavier weight and the need for compatible clamps or joints for a secure fit. Ideal for shop environments that prioritize longevity and minimal maintenance.
4″ X 90 – Dust Collection Elbow (Long Radius) 20 Ga. Galvanized Steel
Featuring the same heavy-duty 20-gauge galvanized steel, this 4-inch elbow is well-suited for compact dust collection runs or retrofit projects where space is limited. It offers strong corrosion resistance and a wide inner radius for smoother airflow. Choose this if you need a reliable 4-inch bend that fits tight installations. A potential limitation is the smaller diameter, which may require larger fans or higher velocity ducting to maintain throughput in some systems.
US Duct G6169 – 4″ 90 Deg Industrial Dust Collection Long Radius Elbow
Grizzly Industrial’s G6169 offers a 4-inch long-radius elbow suitable for a range of industrial dust collection setups. It is designed for easy integration with standard 4-inch ducts and provides consistent airflow through a smoother bend. Best for budget-conscious projects that still require dependable long-radius performance. Caution: ensure compatibility with your existing ducting adapters and mounting hardware to avoid alignment issues.
4″ SpeediChannel 90-De Long Radius Bend (Natural)
This product type is focused on modular channel systems, offering a long-radius bend with a natural finish. It is best for streamlined installations where modular channel components minimize field cutting and threading. It’s a solid pick for projects requiring precise fitment with compatible SpeediChannel accessories. Limitation: compatibility must be verified with the rest of the SpeediChannel family for a secure joint and leak-free connection.

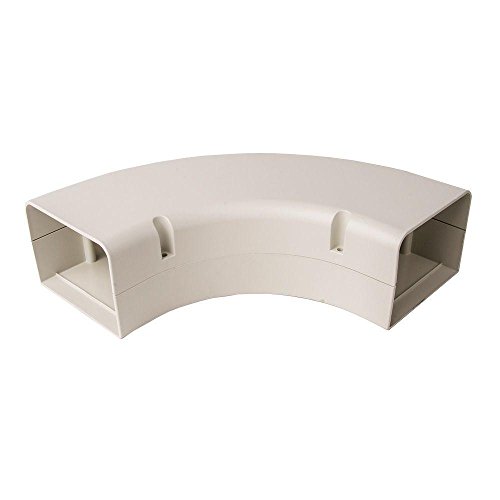

DiversiTech 230-LFB4 Speedy Channel 90 Degree Long Flat Elbow, 4″ Size
Designed for Speedy Channel systems, this 4-inch long flat elbow offers a wider-radius option within a flat-style profile. It is best for chopper-style bending applications where space constraints exist but a gentle turn is needed. Better for modular duct layouts with compatible accessories, it’s less ideal for non-Speedy-Channel installations. Caution: ensure the hardware and seals match your ducting system to avoid fit issues.
HVAC OV 90° Degree Ø4 Inch Elbow Bend Duct Connector
HVAC OV’s 4-inch galvanized steel elbow is designed to fit inside standard 4-inch ducts, with a 90-degree bend to redirect airflow. It’s well-suited for home or light industrial HVAC projects requiring a secure push-fit connection followed by sealing or clamps for a tighter seal. Best for simple, inside-duct redirection tasks. Limitation: designed for inside fits; external-facing connections may require additional adapters or clamps for secure sealing.
Buying Guide: Key Considerations For Long Radius Duct Elbows
- Material and gauge: Thicker, galvanized steel (like 20 gauge) delivers durability in demanding environments but adds weight and handling considerations.
- Radius and bend angle: Long-radius designs reduce turbulence and pressure loss versus sharp 90-degree turns, improving system efficiency.
- Diameter compatibility: Match the elbow to your duct size (4″, 6″, etc.) to avoid leaks or the need for adapters.
- Installation method: Push-fit, slip-fit, or screw/clamp connections affect ease of installation and seal reliability. Plan sealing or gaskets where needed.
- System type: Dust collection vs HVAC or Speedy Channel modular systems influence recommended products due to compatibility with fittings and accessories.
- Environmental conditions: Consider corrosion resistance for metal ducting in dusty or humid environments.
FAQ
- What is a long-radius elbow, and why choose one?
A long-radius elbow provides a gentler bend, reducing airflow resistance and buildup at corners, which improves system efficiency and reduces maintenance. - Which diameter should I choose?
Select the duct diameter that matches your system’s existing pipes or ducts to minimize adapters and leaks. Common sizes include 4″ and 6″. - Are all long-radius elbows interchangeable with Speedy Channel systems?
Not always. Some products are designed for modular channel systems; verify compatibility with your ducting family before purchasing. - Is galvanized steel necessary for dust collection?
Galvanized steel offers corrosion resistance and durability for dusty environments, but weight and cost should be considered against alternatives. - How do I seal joints on long-radius elbows?
Use appropriate clamps, sealant, and, if needed, gaskets. Follow manufacturer recommendations to ensure a secure, leak-free connection. - What installation challenges might arise?
Access space, alignment with other fittings, and ensuring consistent airflow across bends are common concerns. Prepare with correct adapters and supports.
