Direct answer: KSD9700 temperature control switches provide compact, reliable over-temperature protection for small appliances, motors, and electronics. This guide highlights five top options, explains who each is best for, and compares key details to help you choose. Ideal buyers include DIY enthusiasts, appliance repairers, and hobbyists needing precise thermal protection in tight spaces.
| Product | Action Temperature | Type | Current | Package |
|---|---|---|---|---|
| Rebower KSD9700 NC 60C | 60°C | NC | 250V 10A | 2 pcs |
| FOCMKEAS 6 Pcs KSD9700 55℃ NC | 55°C | NC | 250V 5A | 6 pcs |
| uxcell 5Pcs KSD9700 40℃ N.O | 40°C | NO | 250V 2A | 5 pcs |
| MECCANIXITY 5 Pcs KSD9700 85°C NC | 85°C | NC | 250V 10A | 5 pcs |
| FOCMKEAS 6 Pcs KSD9700 90℃ NC | 90°C | NC | 250V 10A | 6 pcs |
Rebower KSD9700 NC 60C Temperature Control Switch
Best for compact, high-accuracy protection in small appliances and micro motors. This NC (Normally Closed) switch activates at 60°C and supports up to 250V and 10A, making it suitable for devices with modest current draw. The metal body enhances durability and heat transfer for reliable sensing. Choose this if you need a fast-acting, mid-range cut-off in tight spaces.
Caution: The NC configuration means the circuit is closed until the set temperature is reached; ensure wiring plans account for default closed contacts during installation.
FOCMKEAS 6 Pcs KSD9700 55℃ NC
Best for bulk stocking in repair workshops or projects needing multiple replacements. This set uses 55°C NC switches with a compact plastic body and BR-1 bimetal strip for quick response. Each unit is rated 250V 5A, suitable for light to moderate loads. The low-temperature point makes it ideal for appliances requiring gentle protection. Better for bulk kits and non-heat-intensive devices.
Limitation: The 5A rating may be insufficient for higher-current motors or heating elements; verify your load before installing multiple devices in parallel.
uxcell 5Pcs KSD9700 40℃ N.O
Best for projects requiring normally open operation and a low activation point. The 40°C action temperature with a 2A current limit suits devices that should start protection only after cooling below the threshold or in circuits that rely on pre-activation logic. The compact plastic shell aids installation in tight spaces. Choose this if you need NO behavior and a low trip point.
Limitation: Not suitable for high-current or high-load devices; ensure the load stays within 2A per switch.

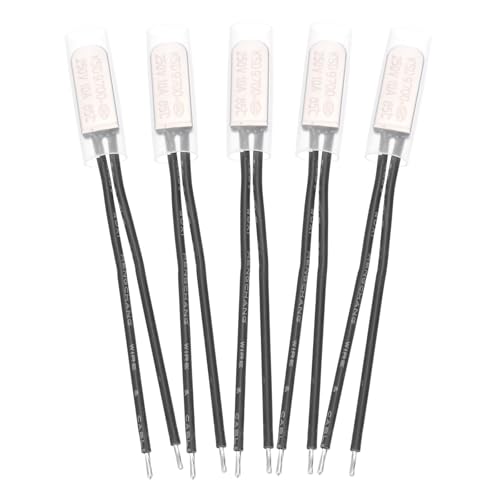

MECCANIXITY 5 Pcs KSD9700 85°C NC
Best for higher-heat environments and motor protection. The 85°C NC switches are metal-bodied and rated at 250V 10A, suitable for moderate to higher current applications in appliances and motors. They offer robust construction and reliable disconnection at the setpoint. Use this when temperatures may surge and you need a stronger response.
Limitation: Higher trip point may not protect extremely sensitive components; confirm that an 85°C cut-off aligns with your device’s temperature tolerance.
FOCMKEAS 6 Pcs KSD9700 90℃ NC
Best for demanding thermal protection in high-temperature environments or industrial-style small equipment. The 90°C NC switches are designed for durable brass shells and quick temperature response, with a 250V 10A rating. They provide strong protection for heaters, power supplies, and motor-driven devices that run hot. Choose this if your application tolerates higher trip temperatures and needs robust construction.
Caution: Higher trip temperature means later shutdown; ensure your system operates safely within this threshold to avoid damage before activation.
Buying Guide
What is a KSD9700 switch?
A KSD9700 is a temperature-controlled thermal protector switch used to interrupt or allow current flow when a device reaches a preset temperature. They are compact, largely self-contained, and commonly used in appliances, motors, and small electronics.
Which activation type should I choose?
NC (Normally Closed): circuit is closed at room temperature and opens when the temperature reaches the setpoint, providing automatic protection. NO (Normally Open): circuit is open at room temperature and closes when the temperature reaches the setpoint, often used for staggered or reset-based control. Your choice depends on whether you want protection to trigger on rising temperature (NC) or start operation when cooling (NO).
How do I pick the right temperature?
Match the switch’s action temperature to the device’s safe operating temperature. For high-heat appliances or motors, higher trip points like 85°C–90°C may be appropriate. For delicate electronics or low-heat devices, 40°C–60°C offers earlier protection. Always ensure the load current is within the switch’s rated amperage.
What about enclosure and material?
Metal-bodied switches typically offer robust heat transfer and durability, suitable for motors and hot environments. Plastic-bodied versions are lighter and easier to install in cramped spaces, often adequate for electronics and low-load applications. Consider insulation and the expected environment when choosing.
How many switches do I need?
Bulk kits (like 6 pieces) are convenient for repair shops or projects with multiple devices. If you’re maintaining a single appliance, a single switch is often enough, but having a spare is prudent for future replacements.
Installation considerations
Confirm the switch terminals and wire gauge match your wiring harness. Observe proper electrical isolation, especially in mains-powered devices. If you’re unsure about wiring, consult a professional to prevent safety hazards.
FAQ
- What is the difference between NC and NO in KSD9700 switches? NC closes at room temperature and opens at the setpoint; NO opens at room temperature and closes at the setpoint. Choose NC for automatic protection on overheating.
- Can I use a KSD9700 switch for high-current motors? Yes, but ensure the rated current matches the motor’s draw. If the motor exceeds 10A, select a higher-current variant or multiple switches as appropriate.
- Are KSD9700 switches easy to install in small devices? Yes, many are compact with small form factors, especially the plastic-bodied versions. Verify space and wire routing before installation.
- Should I choose a metal or plastic body? Metal bodies offer better heat conduction and durability for hot environments; plastic bodies are lighter and often sufficient for lower-load electronics.
- What happens if the switch fails? A failed switch could either stay closed or fail to trip. Always replace with an equivalent or higher-rated part and test the device after installation.
- How many switches should come in a kit? Kits commonly include 5–6 switches, which is convenient for multi-device projects or replacements.
