Choosing the right high pressure switch ensures safe and reliable operation of refrigeration and HVAC systems. This guide highlights five dependable options, explaining who each is best for, how they function, and key considerations to help you compare efficiently. The focus is on switches that open on rising pressure and provide automatic reset or fixed actuation as noted in their listings.
| Product | Best For | Open / Close PSI |
|---|---|---|
| SHP600475 High Pressure Switch (Supco) | Industrial refrigeration and air conditioning with demanding pressure ranges | Open 600; Close 475 |
| SHP600475 High Pressure Switch (FurnyQuaint) | Systems requiring precise monitoring and automatic reset | Open 600; Close 475 |
| SHP550450 High Pressure Switch (Supco) | Standard HVAC refrigeration with reliable fixed actuation | Open 550; Close 450 |
| SHP250180 High Pressure Switch (Supco) | Lower-pressure refrigerant circuits and compact systems | Open 250; Close 180 |
| SHP400300 High Pressure Switch (FYXRAO) | Mid-range refrigeration and HVAC installations | Open 400; Close 300 |
Supco SHP600475 High Pressure Switch, Opens 600 Psi
Best for demanding refrigeration and industrial HVAC setups with higher pressure requirements. The switch is designed to open at 600 psi and close at 475 psi, offering tight pressure control for safety and efficiency. Best for equipment that operates near upper pressure limits where precise monitoring matters.
Key considerations: robust actuation range supports critical equipment safety. Potential limitation: the listed features mention “Made in China” without additional performance spec details; verify compatibility with your system’s electrical and mechanical requirements.
Who it’s for: facilities needing a high-threshold switch to protect compressors and condensers in hot climates or high-demand cycles. Why selected: strong default range aligns with common R410A/R134a-like refrigerant applications in medium-to-large systems.
SHP600475 High Pressure Switch By FurnyQuaint
Better for users needing precise pressure monitoring with automatic reset. This model opens at 600 psi and closes at 475 psi and is designed for compatibility with air conditioning and refrigeration systems, hydraulic setups, and industrial controls. Automatic reset reduces manual intervention and downtime.
Best for: installations where reliability and fast automatic recovery are essential after high-pressure events. Caution: ensure electrical ratings and mounting fit your panel and wiring scheme.
Supco High Pressure Switch, Open 550 PSI, Close 450 PSI
Choose this when a reliable fixed-actuator switch is needed for standard HVAC refrigeration equipment. Open at 550 psi and close at 450 psi offers a balanced range suitable for mid-cycle safeguards and system protection. The green variant signals standard operation visually in certain installations.
Caution: best used where a fixed actuation range aligns with system operating pressures; confirm compatibility with the refrigerant type and compressor surge characteristics.
Supco SHP250180 High Pressure Switch Open 250 PSI Close 180 PSI
Best for smaller or compact refrigeration circuits requiring lower pressure thresholds. Open at 250 psi and close at 180 psi, making it suitable for light commercial equipment or smaller chilled-water systems. Automatic operation supports easier maintenance in remote locations.
Limitation: lower pressure range may not be suitable for high-load commercial setups; verify the switch’s electrical ratings fit your controls and relays.
SHP400300 High Pressure Switch Open 400 PSI Close 300 PSI
Good middle-ground option for mid-range refrigeration and HVAC projects. Open at 400 psi and close at 300 psi, providing a balanced threshold for many standard systems. The FYXRAO listing notes it as compatible with Supco part numbers and common control schemes.
Better for: installations where a versatile, mid-range pressure switch is needed across various equipment. Caution: confirm exact mounting footprint and electrical connection orientation to avoid fitment issues.

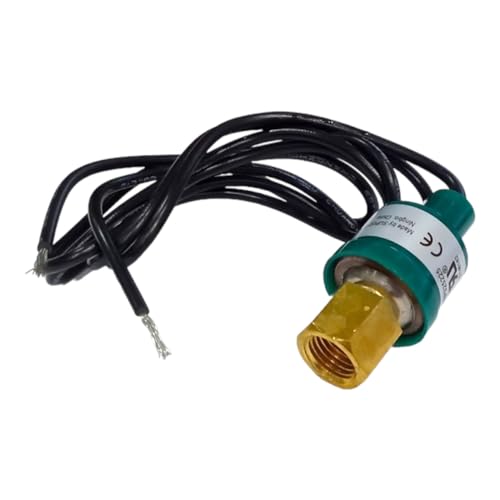

SHP325225 High Pressure Switch Open 325 PSI Close 225 PSI
This option suits refrigeration and HVAC systems that require a slightly lower but reliable differential. Open at 325 psi and close at 225 psi, offering protection against moderate-high pressure events in mid-sized equipment. The listing notes its compatibility with standard HVAC controls and relays.
Limitation: not ideal for very high-pressure systems; ensure your application’s maximum operating pressure stays within the switch’s range.
Buying Guide: Key Considerations For High Pressure Switches
What pressure range do you need? Determine your system’s operating pressure and surge points. Choose a switch with an open (setpoint) above the normal operating pressure and a close (reset) well below, to avoid nuisance tripping.
Fixed vs automatic reset: Fixed-actuator models stay reset until re-triggered by an operator. Automatic-reset models re-close when pressure falls back into range, reducing downtime. Select based on your maintenance workflow and downtime tolerance.
Electrical compatibility: Check voltage, current, and contact configuration (SPDT or SPST) to ensure the switch integrates with your control circuitry, relays, and safety interlocks.
Environmental and refrigerant considerations: Some switches are designed for specific refrigerants and environmental conditions. Verify materials, corrosion resistance, and compatibility with your system fluids.
Physical fit and installation: Confirm mounting style, port size, and electrical connector type. A switch that physically fits your panel and piping saves installation time and reduces leak risk.
Reliability notes: Look for switches designed for HVAC and refrigeration use cases, with robust seals and proven performance in similar applications. Availability of replacement actuators or seals can influence long-term maintenance.
Frequently Asked Questions
- What is a high pressure switch in refrigeration? A high pressure switch monitors system pressure and opens the circuit to protect compressors and condensers when pressure rises beyond a safe threshold. It often features an automatic reset or fixed actuation.
- How do I choose the right pressure range? Match the switch’s open pressure to just above typical operating pressure, and ensure the close pressure is safely below, so the system returns to normal operation after a surge.
- What does automatic reset mean? Automatic reset allows the switch to reclose automatically after pressure returns to its normal range, minimizing manual intervention.
- Are these switches compatible with all refrigerants? Compatibility depends on materials and design. Verify with the manufacturer’s datasheet for your refrigerant type and system pressure profile.
- Can I mix different high and low pressure switches in the same system? It’s possible but requires careful coordination of cut-in and cut-out pressures, electrical wiring, and safety interlocks to avoid conflicts.
- What installation considerations matter? Pay attention to port size, mounting orientation, depth, electrical connector type, and the switch’s electrical ratings to ensure safe, leak-free integration.
