When choosing a high pressure cutout switch, select models that clearly indicate a defined open/close point, compatibility with your equipment, and robust construction for consistent performance. This guide highlights five top options, each suited to different buyer needs—home HVAC technicians, automotive enthusiasts, and professional installers seeking dependable pressure monitoring. The listed products emphasize clear cutout thresholds, straightforward installation, and practical limitations to help you decide which switch fits your system best.
Below is a quick comparison to help you decide at a glance. The table lists core attributes for five popular options, focusing on intended use, typical mounting style, and notable best-for scenarios.
| Product | Best For | Key Benefit | Limitations |
|---|---|---|---|
| Four Seasons 35961 | Vehicle/auto A/C systems | Compressor mounted high cut-out for automotive cooling systems | Vehicle-specific fit; verify compatibility with your model |
| Danfoss KP36 | Industrial or HVAC subsystems | High-precision 17 bar, SPDT for flexible wiring | Standard plumbing size (G1/4) may require adapters |
| Johnson Controls P70CA-3C | Industrial and commercial chillers | High pressure cutout with wide range and SPST open-on-rise | Compatibility depends on system wiring and capillary setup |
| Four Seasons 20055 | Automotive or small refrigerant systems | Compact compressor-mounted switch | Part-specific packaging; confirm fitment for your unit |
| A-Premium (2-pin) | Classic vintage or late-model GM systems | Extensive vehicle fitment coverage and wiring convenience | Extensive fitment lists may require precise matching |
Four Seasons 35961 Compressor Mounted High Cut Out Switch
Brand: Four Seasons. Model: 35961 (Compressor Mounted High Cut-Out). This part is listed as vehicle-specific, making it a logical choice for automotive A/C cooling systems where the compressor cutout is critical for protecting the compressor and overall system. Best for buyers seeking a direct fit for certain vehicle makes and models. A potential limitation is the need to confirm exact vehicle compatibility before purchase to avoid incorrect fitment.
DANFOSS KP36 Pressure Switch, 17 Bar SPDT
Brand: Danfoss. Model: KP36, 17 BAR, G1/4 male PRES CON, SPDT. This switch offers a medium-high cutout setting with SPDT configuration, suitable for HVAC and industrial applications requiring versatile wiring choices. Best for systems needing a clearly defined cutout point and simple wiring. A limitation is the need to verify thread size and connection type against existing plumbing fittings in your setup.

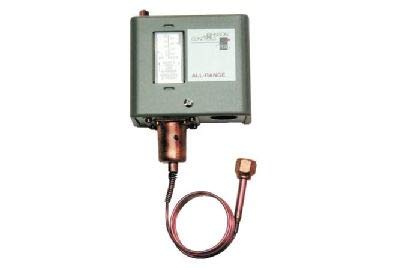

Johnson Controls P70CA-3C High Pressure Cutout
Brand: Johnson Controls. Model: P70CA-3C. High pressure cutout with a broad range, SPST, opens on rise, 36 inch cap, 1/4 inch nut. This option is well-suited for industrial or commercial equipment requiring a robust switch and longer lead length for flexible installation. Choose this if you need a longer sensor lead and straightforward single-pole operation. Limitation: verify compatibility with your wiring harness and mounting location.
Four Seasons 20055 A/C Compressor Mounted High Cut-Out
Brand: Four Seasons. Model: 20055 (Compressor Mounted High Cut-Out). Noted for a compact profile suitable for automotive A/C systems. Best for buyers seeking a space-saving option that remains reliable for compressor protection. Limitation: data indicates basic packaging; confirm fitment and electrical connections with your vehicle or unit before purchasing.
A-Premium 2-Pin A/C Compressor Cut-Out Switch
Brand: A-Premium. Model: 2-Pin cut-out switch. Extensive vehicle fitment lists include many Chevrolet, Cadillac, GMC, Buick, and related models. Best for buyers needing broad compatibility and straightforward installation with two-pin wiring. Limitation: vehicle-fit lists are long; ensure exact compatibility with your specific model year and trim.
Buying Guide: Key Purchase Considerations
What is a high pressure cutout switch and why do I need one?
A high pressure cutout switch automatically interrupts electrical connection when system pressure rises beyond a set threshold. This protects compressors, evaporators, and coil circuits from damage due to overpressure. It is essential in automotive A/C, refrigeration, and industrial HVAC applications where reliable shutdown at unsafe pressure levels is critical.
How to choose the right cutout switch
- Operating pressure: Match the cutout setting to your system’s normal operating range and safety margins.
- Electrical configuration: SPST or SPDT affects how you wire and control the switch within the circuit.
- Mounting and connection: Verify thread size (e.g., G1/4) or mounting style, and ensure compatible electrical NUTS and connectors.
- System compatibility: Vehicle-specific switches require exact model-year fit; industrial units may demand wider wire gauge and longer leads.
- Environmental rating: Consider ambient temperature and exposure (dust, moisture) in the installation location.
Installation and maintenance considerations
- Follow wiring diagrams and service manuals for correct placement and wiring polarity.
- Check for proper sealants or anti-corrosion treatments when mounting in automotive or outdoor environments.
- Periodically inspect connections for corrosion, loose terminals, and damaged insulation.
What to watch out for: common limitations
- Vehicle-fit constraints: Many switches are designed for specific makes and models; confirm compatibility before purchase.
- Connection size and thread compatibility: Some switches use standard fittings that may require adapters.
- Lead length: Longer leads aid installation flexibility but require careful routing to avoid damage.
FAQ
- Q: What does “high cut-out” mean in a pressure switch? A: It refers to the pressure at which the switch opens the circuit to protect the system.
- Q: Do these switches require a specific electrical voltage? A: Most are designed for standard automotive or HVAC control voltages; always verify the system’s electrical requirements.
- Q: Can I reuse an old cutout switch in a different vehicle? A: It depends on fitment, mounting, and wiring compatibility; confirm specifications before reuse.
- Q: How do I know which model is best for my system? A: Consider operating pressure, wiring configuration, fitment, and mounting constraints relevant to your equipment.
- Q: Are SPDT switches more versatile than SPST? A: Yes, SPDT offers more wiring options, enabling multiple control schemes, but SPST provides a simpler on/off path.
- Q: Is a longer lead better for installation? A: Longer leads offer flexibility, but ensure they are properly insulated and routed to prevent damage.
