Flat plate heat exchangers offer compact, efficient heat transfer for water-to-water heating, floor warming, and snow-melting setups. This guide highlights five reliable options to match different capacity needs, from compact 30-plate models to larger 40-plate configurations. Whether you’re upgrading a home heating system or expanding a radiant floor project, these selections balance performance, ease of use, and value for American buyers.
| Product | Capacity (approx.) | Best For | Note |
|---|---|---|---|
| AB Plate Heat Exchanger, 5″x12″ 30 Plates | 270,000–380,000 BTU/h | Smaller homes, radiant floors | Great balance of size and output |
| AB Plate Heat Exchanger, 5″x12″ 40 Plates | 380,000–530,000 BTU/h | Larger spaces, robust heating | Higher flow capacity |
| AB Plate Heat Exchanger, 3″x8″ 30 Plates | 200,000–280,000 BTU/h | Compact installs, modest loads | Best for tight spaces |
| 12 Plates Stainless Steel Flat Plate Heat Exchanger | 12-plate configuration | Floor and water heating | Ideal for retrofit or standalone use |
| 150,000 BTU/hr: 10-Plate Heat Exchanger | 150,000 BTU/h | Domestic hot water, outdoor boiler | Simple, proven option |
AB Plate Heat Exchanger, 5″x12″ 30 Plates
Best for small to medium radiant floor projects and water-to-water heating with moderate flow. Made from high quality 316L stainless steel with copper brazed edges for a rugged, leak-resistant core. The 30-plate design offers a solid balance between performance and physical footprint. The product emphasizes high conductivity and thin stainless plates to maximize heat transfer while saving energy and avoiding electricity dependence.
- Best for compact installations where space is at a premium.
- Designed to resist high pressure and temperature, reducing leakage risk.
- Limitations: 30-plate capacity may be insufficient for very large or high-demand systems.
AB Plate Heat Exchanger, 5″x 12″ 40 Plates
This 40-plate model builds on the same robust copper/316L stainless steel construction with enhanced heating capacity. It suits larger floor heating zones or simultaneous hot water needs with higher BTU per hour, offering more thermal mass in a compact form. The design emphasizes a quick, flexible hookup and energy-efficient transfer without external power input.
- Better for larger homes or extensible radiant systems.
- Pros: higher BTU capacity and still compact; Cons: larger footprint than the 30-plate version.
- Limitations: Higher plate count might increase installation complexity in tight spaces.
AB Plate Heat Exchanger, 3″x8″ 30 Plates
Best for installations with limited space or lower heating loads. The 3×8 inch model uses 30 plates to deliver reliable water-to-water heat transfer in a compact footprint. It shares the same premium 316L stainless steel and copper-brazed edge construction for durability. It’s a practical choice where pipe routing and enclosure dimensions constrain larger models.
- Choose this if space is the primary constraint.
- Pros: small form factor with solid performance; Cons: lower BTU/h than larger AB units.
- Limitation: may require careful matching to system flow rates to prevent undersizing.

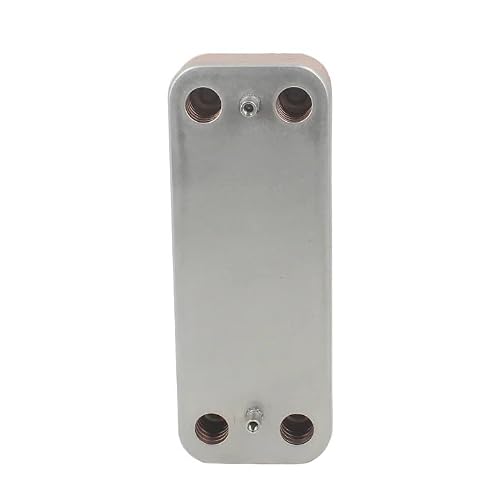

12 Plates Stainless Steel Flat Plate Heat Exchanger
Selected for floor and water heating applications with a 12-plate configuration. This model is suitable for retrofit projects or where an additional heat transfer stage is desired within a radiant floor system. Stainless steel construction aligns with long-term durability in heating circuits. It’s best for moderate loads and simpler installation scenarios.
- Best for retrofits or modular additions to existing systems.
- Pros: adaptable to various layouts; Cons: plate count is fixed, limiting peak BTU compared to larger AB units.
- Limitation: ensure compatibility with your existing piping and flow requirements.
150,000 BTU/hr: 10-Plate Heat Exchanger
Ideal for domestic hot water heating, outdoor wood boilers, and water-to-water heating or cooling with a moderate demand. The 10-plate configuration provides a straightforward, easy-to-install option for smaller installations or supplementary heating needs. It’s a simple choice when clarity and quick setup trump higher output.
- Best for smaller homes or supplementary heating.
- Pros: straightforward, economical; Cons: limited capacity compared with higher-plate models.
- Limitation: may not meet high-flow, high-heat demands without upgrading to a larger unit.
Buying Guide: Key Purchase Considerations
How to choose the right plate count and size
Plate count directly influences heat transfer capacity and footprint. Larger BTU targets require more plates and larger overall size. Consider your projected peak load, floor area, and piping space when selecting between 30, 40, or 12-plate configurations.
Material and construction: Why 316L stainless and copper edges matter
316L stainless steel offers corrosion resistance in heated water, while copper brazing at the edges enhances seals and overall durability. This combination reduces leakage risks and supports higher operating pressures and temperatures.
Footprint and installation considerations
Assess the available installation space, including clearance for connections and maintenance. Compact models are easier to route in tight basements or utility rooms, while larger units suit dedicated mechanical rooms with ample space.
Application fit: floor heating, snow melting, and hot water
Match the unit’s design to your primary application. Floor heating often benefits from steady, moderate BTU output, while hot water and snow-melting setups may require higher peak BTU capacities or more plates to handle demand spikes.
Installation cautions and best practices
Use the specified threading and connection sizes for quick hookups. Ensure correct flow direction and seal integrity. Regular inspection for pinhole leaks and gaskets is advised in long-term installations.
Maintenance and longevity considerations
Flat plate exchangers typically require minimal maintenance beyond checking for leaks and cleaning flow passages as needed. Favor models with robust end plates and corrosion-resistant components for extended service life in residential and light commercial settings.
FAQ
- What is a flat plate heat exchanger best for?
They are ideal for water-to-water heating, radiant floor systems, and modest cooling or heating loops in homes. - How many plates should I choose for my radiant floor project?
Typically start with 30 plates for medium loads, or 40 plates for larger spaces; adjust based on flow rate and target BTU/h. - Are 316L stainless steel units safe for hot water?
Yes, 316L stainless steel with copper-brazed edges provides corrosion resistance suitable for potable and heated water systems. - What maintenance does a flat plate exchanger require?
Minimal; check for leaks, ensure clean flow passages, and verify connections during routine system checks. - Can I retrofit a flat plate exchanger into an existing system?
Yes, provided piping, ports, and flow characteristics match the new unit; consult installation guidelines for compatibility. - Which model is best for a small apartment?
The 3″x8″ 30-plate model (or similar compact options) is well-suited for space-constrained installations.
