When selecting a condenser fan cycling control, the main goal is to maintain efficient system pressure and temperature without overworking the compressor. This guide helps buyers choose appropriate controls for different refrigerants, environments, and installation needs. Best-for profiles include industrial technicians seeking precise stability, facility engineers balancing energy use, and HVAC pros aiming for reliable, low-maintenance protection. The table below compares five top options to help you pick quickly based on enclosure, pressure range, and basic features.
| Product | Brand | Pressure Range | Best For |
|---|---|---|---|
| Johnson Controls P70AA-118C | Johnson Controls | 100–400 psi | Rugged, field-adjustable with lockout |
| RANCO O10-2054 Condenser Fan Cycling Control | Ranco | 100–400 psi | Simple controller option |
| Supco SFC200240 | Supco | 200 psi | Open-on-low-pressure switch |
| Ranco O10-2054 Condenser Fan Cycling Control / High Pressure | Ranco | High pressure capillary | Capillary-based reference |
Johnson Controls P70AA-118C Condenser Fan Cycling Control
Model Type: Single-Pole, Single-Throw cycling control for non-corrosive refrigerants. It uses a 36″ capillary and 1/4″ flare nut connections, enabling precise cycling within 100 to 400 psi. The rugged steel case and cover protect internal components in tough environments. A visible pressure scale on the sight-set adjuster makes setup straightforward without needing to remove the cover on NEMA 1 enclosures. Best for facilities needing lockout safety and easy field adjustments.
Best for: Industrial facilities and service technicians who require a durable unit with a visible pressure readout and a manual reset lockout option. The lockout feature prevents unintended cycling when pressure is outside the safe range. Caution: Ensure compatibility with your refrigerant’s pressure profile; this unit is designed for non-corrosive refrigerants and may not suit certain aggressive chemicals.
RANCO O10-2054 Condenser Fan Cycling Control
Brand: Ranco. This model is described as a Type: Controller with a 100–400 psi range, designed for condenser fan cycling. It emphasizes straightforward operation and compatibility with typical condenser setups. The simple designation suggests it is a reliable general-purpose option for standard residential or light commercial systems where cycling control is needed to protect the compressor and manage head pressure.
Best for: Technicians seeking a reliable, uncomplicated controller that fits into common electrical configurations. It’s a solid choice when a basic, inexpensive cycling control is sufficient. Caution: Check that you are purchasing the exact O10-2054 variant compatible with your unit’s wiring and enclosure type to avoid fit issues.

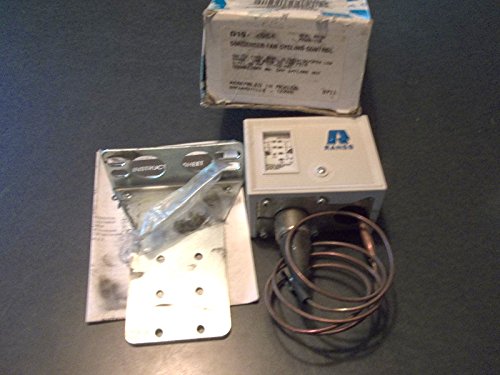

Ranco O10-2054 Condenser Fan Cycling Control / High Pressure
This listing highlights the Ranco O10-2054 with a high-pressure capillary reference. It’s listed under the Ranco brand with the model tag O10-2054. This variant is suitable for systems requiring a capillary-based pressure reference to control condenser fan cycling, helping to balance head pressure during varying load conditions.
Best for: Projects where a capillary-based, high-pressure reference is preferred for cycling control. Choose this if your system benefits from a simple, fixed-pressure reference rather than an electronic sensor. Caution: Verify the exact capillary length and connection details to ensure proper installation with your refrigerant and pipe size.
Buying Guide
Key considerations when selecting a condenser fan cycling control include your refrigerant type, operating pressure range, enclosure environment, and installation ease. The following questions help clarify choices:
- What is the refrigerant and its typical head pressure range? Select a control within a safe range to prevent over- or under-cycling.
- Do you need a visual pressure readout on the device for easier field adjustments? Models with built-in sight-reading scales save time during setup.
- Is a manual reset lockout important for safety? Lockout features prevent cycling when pressure exceeds safe limits and require deliberate reset.
- What enclosure type do you have (NEMA 1 versus open electrical cabinet)? Some controls are designed for specific enclosures and may require removal of the cover for adjustments.
- Is a capillary-based reference preferable, or do you rely on electronic sensing? Capillary models offer mechanical simplicity, while electronic sensors can provide precise control in complex systems.
- What are the installation connections (1/4″ flare nut, 36″ capillary, etc.) and compatibility with your piping and hardware?
Comparison snapshot:
- Durability: Johnson Controls offers a rugged steel case suitable for harsh environments, with a clearly adjustable pressure scale.
- Simple operation: RANCO options are straightforward and commonly used in standard cooling systems.
- Cost vs. features: Supco provides a 200 psi open-on-low-pressure switch, which can be a cost-effective choice in appropriate systems.
- Reference method: Some Ranco models rely on capillary-based references, which can be easier to install but may have fixed response characteristics.
What to verify before buying
- Ensure the unit is rated for the refrigerant and its pressure range in your system.
- Confirm the electrical and mechanical connections match your equipment (flare nut sizes, capillary length, and enclosure compatibility).
- Check whether a manual reset lockout is required for your safety and maintenance procedures.
Usage considerations
Condenser fan cycling controls are designed to regulate head pressure by turning the condenser fan on and off at set pressures. This helps protect compressors and stabilize system performance during varying ambient conditions. For best results, install controls according to manufacturer guidelines and ensure proper calibration for your specific refrigerant and operating environment.
FAQ
- What is a condenser fan cycling control? A switch that starts and stops the condenser fan based on refrigerant pressure to maintain system stability.
- Why is a visible pressure scale useful? It simplifies setup and adjustments without disassembly.
- When should I use a lockout option? When you need to prevent cycling until pressure returns within an acceptable range for safety or protection.
- Is capillary reference always better? Capillary references are simple and robust, but electronic sensors may offer finer control in complex systems.
- Can these controls be reused in multiple systems? They are generally designed for specific ranges and connection types; verify compatibility before reuse.
- Do these controls protect against overpressure? They help manage head pressure but should be part of a comprehensive system protection strategy.
