When choosing a thermostat with a capillary tube, aim for reliable expansion-based cooling or heating control, clear temp ranges, and durable capillary/instrument bulbs. This guide highlights five capillary thermostat options ideal for kitchens, refrigeration, ovens, and equipment that require precise, noise-free operation. Best for DIYers, professional chefs, and HVAC or appliance technicians seeking direct replacement or easy upgrades.
Summary table of selected products:
| Product | Brand | Temp Range | Best For |
|---|---|---|---|
| Capillary Thermostat TS-120SR | RAINBOW | Up to 240°F | Water-heats, low-to-mid temp control |
| W1609-101 / TH-1609 | Npmkx | -34°C to 32°C | Refrigeration, walk-in coolers |
| Capillary Thermostat TS-320SR | RAINBOW | Up to 608°F | High-temp ovens, industrial heaters |
| ZOKUSIK KKTB-18-48 Oven Thermostat | ZOKUSIK | 150°F to 599°F | Gas ranges with 18″ ovens |
| Capillary Thermostat TS-050SR | RAINBOW | Up to 122°F | Commercial cooking equipment |
Capillary Thermostat TS-120SR 32-248F
Best for: Appliances requiring precise low- to mid-range temperature control up to 240°F. The TS-120SR uses a liquid expansion mechanism with SUS304 stainless capillary tubes and bulb, offering stable, quiet operation. It’s suitable for water-heating contexts or equipment where accurate control at moderate temperatures matters. Caution: verify cavity and voltage compatibility before replacement.
W1609-101 / TH-1609 Remote Thermostat
Best for: Refrigeration setups needing precise control with a wide -34°C to 32°C range. The 5-foot capillary length increases installation versatility, making it suitable for walk-in coolers, remote bulb applications, and general cooling systems. Caution: ensure mechanical compatibility with your control panel and power supply.

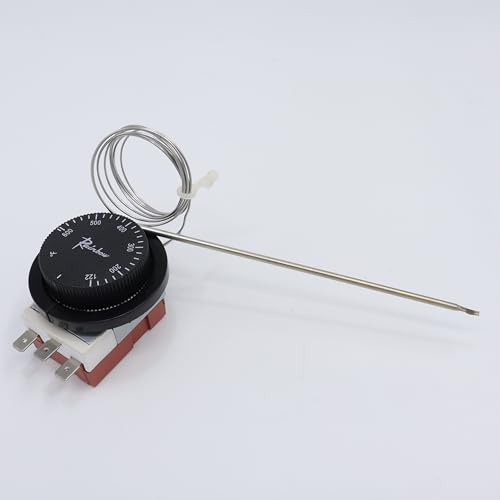

Capillary Thermostat TS-320SR 122-608F
Best for: High-temperature control in ovens and industrial heaters, up to 608°F. The TS-320SR uses non-rust SUS304 steel capillary tubes and a robust sensing bulb for demanding environments. Caution: confirm cavity size and wiring arrangement to fit existing equipment.
ZOKUSIK KKTB-18-48 Oven Thermostat
Best for: Replacement in 30/36/48-inch gas ranges with 18-inch oven cavities. It supports bake and broil (up to 599°F) using a 48″ capillary tube and a front-calibration knob for precise adjustments. Caution: not compatible with ranges lacking an 18″ cavity or with electric ovens.
KKTB-18-48 Oven Thermostat Replacement
Best for: Replacement options for Robertshaw-style 18-inch oven thermostats in Awoco, Forno, Thor, and related brands. It provides a 5A, 120VAC rating, with baking and broiling ranges and a 48″ capillary path. Caution: verify exact part number and oven cavity compatibility before purchasing.
Rannb Capillary Thermostat Switch
Best for: Electric ovens and appliances needing a 50–300°C (122–572°F) control range. This 2-pack offers a practical option for multi-zone ovens or spare parts. It is rated for 16A at 250V, helpful for robust residential or light commercial use. Caution: confirm full electrical compatibility and mounting fit prior to replacement.
Buying Guide
What should you consider when selecting a capillary thermostat?
- Temperature range: Match the target range to your application, whether low-temperature control for cooking equipment or high-temperature control for ovens or industrial heaters.
- Capillary length and bulb design: Longer capillaries offer more placement flexibility, while the bulb type affects response time and accuracy.
- Material durability: Look for SUS304 stainless steel capillaries and corrosion-resistant bulbs for longevity in kitchen or industrial environments.
- Voltage and current ratings: Ensure compatibility with your equipment’s electrical specifications to prevent nuisance trips or unsafe operation.
- Replacement compatibility: Confirm model numbers, oven cavity sizes, or range types before purchasing a replacement.
- Installation conditions: Consider whether the thermostat needs front calibration, easy wiring access, or a specific mounting orientation.
Frequently Asked Questions
- What is a capillary thermostat and how does it work?
A capillary thermostat uses a liquid-filled bulb and a capillary tube to sense temperature. When the sensed temperature changes, the liquid expands or contracts, triggering a snap-action switch that opens or closes a circuit to regulate heat or cooling.
- Which thermostat is best for ovens?
For ovens, look for high-temperature ratings (up to 599°F) and a long capillary tube for flexible routing. Devices like the ZOKUSIK KKTB-18-48 are designed for gas ranges with 18-inch oven cavities and offer bake and broil controls.
- Can I replace an oven thermostat with a general capillary thermostat?
Replacement should match the original part’s electrical ratings, temperature range, and physical dimensions. Always verify part numbers, cavity size, and model compatibility to avoid installation issues.
- What maintenance is needed for capillary thermostats?
Generally minimal; keep connections clean, avoid mechanical stress on the capillary line, and periodically inspect for corrosion or damage to ensure accurate temperature control.
- How do I choose between a 32-122°F and a 122-608°F thermostat?
Choose 32-122°F for low- to moderate-temperature applications like some commercial equipment, and 122-608°F for high-temperature uses such as ovens or industrial heaters.
