Air flow sensing switches are essential for protecting furnaces, boilers, and pool heaters by ensuring adequate airflow before ignition. This guide highlights five reliable options, with clear notes on who each product is best for and where they excel. Whether you need a residential furnace safeguard, a commercial duct fan controller, or a pool heater safety switch, these picks offer dependable operation and straightforward installation.
Product Comparison Snapshot
| Product | Best For | Key Benefit |
|---|---|---|
| Tjernlund PS1503 Pressure Activation Switch | Home HVAC systems needing duct fan control | Simple, reliable pressure-activated control |
| Tjernlund PS1503P Plug-in Activation Switch | Plug-and-play duct fan control | Easy wiring or plug-in option |
| Air Sensing Switch, Fixed (Cleveland Controls) | General HVAC/duct heater applications | Wide operating range and robust enclosure |
| 42001-0061S AFS (Pool/Heater Compatible) | Pool and spa heater systems | Rapid ignition with airflow-sensing precision |
| Cleveland Controls Adjustable Air Sensing Switch | Customizable airflow sensing | Made in the United States |
Tjernlund PS1503 Pressure Activation Switch for Duct Fans
The PS1503 uses HVAC pressure activation to turn duct fans on and off in central heating and air conditioning systems. It is best for homeowners and small businesses needing a straightforward, reliability-focused control for furnace and air handler ducts. The unit is listed under HVAC Controls and Thermostats and is manufactured in the United States by Tjernlund.
Who it’s best for: buyers seeking a durable, simple switch that reliably triggers a duct fan with furnace or AC blower activity. Why selected: strong brand support, proven pressure-actuated control, and straightforward installation. Caution: ensure compatibility with the duct fan’s voltage and wiring configuration before install.
Tjernlund PS1503P Plug-in Air Pressure Activation Switch
This plug-in version provides the same pressure-activated control but in a plug-and-play form. It’s better for installations where direct wiring is difficult or where a temporary solution is preferred. It works with any brand duct fan, including Tjernlund’s Duct Booster Fans, and offers wiring options for both standard black-to-black and white-to-white connections.
Who it’s best for: installers seeking a quick, flexible setup without hard-wiring. Why selected: versatility in wiring approach and compatibility with multiple duct fans. Caution: verify that the plug-in setup fits your enclosure and power source safely.
Air Sensing Switch, Fixed (Cleveland Controls)
Designed for general HVAC and electric duct heater applications, this fixed air sensing switch offers robust electrical ratings and a broad operating temperature range. Key features include SPDT switching, UL/CSA certifications, and a compact footprint suitable for direct installation in control panels.
Who it’s best for: projects requiring a sturdy, US-made sensing switch with reliable electrical performance. Why selected: established brand presence and broad compatibility with HVAC controls. Caution: check installation dimensions to ensure adequate space for wiring and mounting.
42001-0061S Air Flow Switch for Pool Heaters
This air flow switch is designed for pool and spa heater systems, including replacements compatible with Pentair Mastertemp and Sta Rite heaters. It focuses on critical airflow sensing to ensure ignition and proper combustion, triggering ignition when sufficient airflow is detected and coordinating blower operation with the HSI for a quick startup.
Who it’s best for: pool and spa heater setups requiring precise airflow sensing for ignition. Why selected: specialized compatibility with common pool heater models and fast ignition workflow. Caution: verify compatibility with your specific heater model and gas valve configuration before installation.

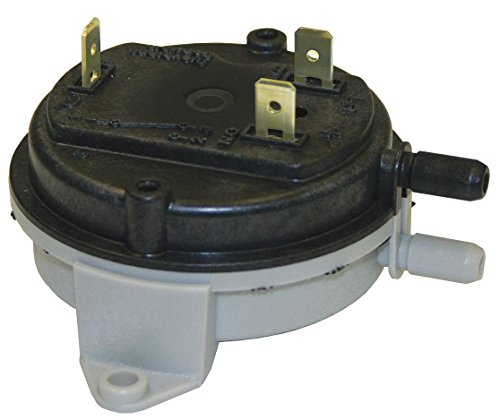

Cleveland Controls Air Sensing Switch, Adjustable
This adjustable version from Cleveland Controls allows fine-tuning of the switching threshold, making it suitable for installations requiring precise airflow control across varying duct configurations. It emphasizes domestic manufacture under the United States label and targets HVAC installations needing customization.
Who it’s best for: technicians and homeowners who need adjustable sensing thresholds. Why selected: flexibility to dial in airflow response. Caution: adjustment requires proper understanding of system airflow and pressure settings to avoid misfires or delayed responses.
Buying Guide: Air Flow Sensing Switch Essentials
What is an air flow sensing switch?
An air flow sensing switch monitors the movement of air in a system and triggers or interrupts electrical circuits based on a detected airflow level. It protects combustion devices and ensures safe, reliable operation of furnaces, boilers, duct heaters, and pool heaters.
Key considerations when choosing
- Application type: residential HVAC, commercial HVAC, pool and spa heaters, or mixed-use systems.
- Wiring configuration: hard-wired vs. plug-in options, and compatibility with existing control hardware.
- Operating range: pressure or differential ranges suitable for your system’s ductwork and blower capacity.
- Electrical ratings: ensure the switch supports the voltage, current, and circuit type (SPDT, 15A noninductive, etc.).
- Environmental conditions: temperature range, enclosure protection, and resistance to moisture or dust.
- Made-in-USA or international origin: for procurement preferences or compliance requirements.
How to compare products quickly
- Best for vs. Better for: identify which switch suits your exact equipment (furnace, pool heater, duct fan, etc.).
- Ease of installation: plug-in options offer quicker setup, while wired switches may provide more robust long-term stability.
- Adjustment needs: adjustable units provide customization; fixed units offer simplicity and fewer misadjustments.
Installation tips
- Follow manufacturer wiring diagrams precisely.
- Place the switch in a location with representative airflow and adequate protection from backdrafts.
- Test operation with the system off, then verify ignition and blower behavior once energizing the circuit.
Maintenance considerations
- Periodically inspect for dust buildup and ensure vent paths remain clear.
- Check electrical connections for signs of wear or corrosion.
- Recalibrate adjustable switches if airflow characteristics change due to duct modifications.
FAQ
- What is an air flow sensing switch used for? It protects ignition systems by confirming adequate airflow before starting burners or blowers.
- Which switch is best for pool heaters? The 42001-0061S AFS is designed for pool and spa heater compatibility.
- Are plug-in switches easier to install? Yes, plug-in versions offer quick setup without hard wiring.
- Can I adjust an air sensing switch? Adjustable models let you tailor the activation threshold to your system.
- Do these switches require professional installation? Depending on the system and local codes, installation may require licensed assistance.
- What should I check before buying? Verify compatibility with your fan or heater, voltage, and installation space.
