Answering the need for reliable, adjustable air flow switch options, the following five products stand out for controlling fans, blowers, and other systems. They are suited for HVAC installers, DIY enthusiasts, and professionals who require precise flow or pressure-based control. This guide compares adjustability, build, and practical use to help you pick the right switch for your setup.
| Product | Best For | Key Feature |
|---|---|---|
| Dwyer Vane Operated Air Flow Switch | General HVAC and ventilation | Adjustable 400-1600 FPM; stainless vane |
| JIUWU Stainless Steel Air Adjustable Pressure Switch | Compact spaces; precise pressure control | 1/8″ PT thread; IP54; 0.5A |
| SNS 1/4 Inch NPT Diaphragm Type Switch | Industrial pneumatic setups | Adjustable; normally open/closed integrated |
| Chazcool HFS-25 Flow Switch | Water and non-corrosive liquid piping | 1″/DN25; SPDT contacts; −10 to 100°C liquid range |
| Tjernlund PS1503P Plug-in Switch | Duct fans and HVAC systems | Plug-in option; auto on/off with blower |
Dwyer Vane Operated Air Flow Switch
The Dwyer vane-operated flow switch is adjustable across a broad range of airflow speeds (400-1600 FPM) and uses a stainless steel vane for durability. Best for HVAC ducts and ventilation systems where moderate to high air movement occurs. The stainless vane helps resist corrosion in typical duct environments, and the adjustable range supports tuning for precise cut-in and cut-out points. A limitation is that the airflow range may need recalibration after large duct changes or maintenance to ensure consistent operation.
- Best for: General HVAC ductwork and ventilation fans needing adjustable airflow detection.
- Why selected: Reliable mechanical design, broad adjustment range, durable stainless vane.
- Caution: Verify vane clearance and duct size compatibility before installation.
JIUWU Stainless Steel Air Adjustable Pressure Switch
The JIUWU unit is compact with a 1/8″ PT threaded connection, designed for tight installations in air or water systems. It offers adjustable control with a normally open design, suitable for pump control and maintaining target pressures. It carries a 0.5A rating and IP54 protection, making it robust for challenging environments. A limitation is its maximum pressure rating of 1.0 MPa, so it should not be used beyond that threshold.
- Best for: Tight spaces where a compact, stainless switch is needed for air or water systems.
- Why selected: Easy installation, precise control, and robust IP54 protection.
- Caution: Do not exceed 1.0 MPa maximum pressure rating.
SNS 1/4 Inch NPT Pneumatic Adjustable Diaphragm Switch
The SNS switch is constructed from stainless steel for durability and offers both normally open and closed configurations in a single unit. Its adjustable diaphragm type design makes it suitable for pneumatic control in industrial settings where precise pressure changes trigger a circuit. Best for: systems requiring robust stainless steel parts and dual-action capability. A caution is the need to confirm thread compatibility with your piping setup to avoid leaks.
- Best for: Industrial pneumatic controls needing adjustable, dual-state operation.
- Why selected: Stainless steel build; integrated normally open/closed option.
- Caution: Check thread and diaphragm compatibility with your system.
Chazcool HFS-25 1″/DN25 Flow Switch
The Chazcool flow switch monitors liquid flow in piping with a vane-driven mechanism and SPDT contacts. It supports a wide liquid temperature range and non-frozen operation, making it suitable for water-based systems and some glycol mixtures. Best for: water or non-corrosive liquid applications where a 1″/DN25 flow switch is appropriate. A limitation is that it is designed for liquids, not air, so avoid using for air-only applications.
- Best for: Water flow monitoring in heating, cooling, or irrigation lines.
- Why selected: Clear flow indication, SPDT output, adjustable flow threshold.
- Caution: Not suitable for air or highly corrosive liquids.
Tjernlund PS1503P Plug-in Air Pressure Activation Switch
The PS1503P is designed for duct fans in central heating and cooling systems. It offers a plug-in option, plus a plug-in version for simple installation. The switch activates based on air pressure and can be used with various brands of duct fans. Best for: quick retrofits where a plug-in control is preferable. A caution: wiring should follow safety norms to avoid electrical hazards in high-dust environments.
- Best for: Duct fans and HVAC systems needing plug-in activation.
- Why selected: Convenience of plug-in operation and cross-brand compatibility.
- Caution: Ensure proper wiring and enclosure protection in dusty areas.
Tjernlund PS1503 Pressure Activation Switch
The PS1503 provides HVAC control and thermostat-style activation for duct fans. It is marketed as a US-made component for central systems, emphasizing compatibility with HVAC controls. Best for: installations that require HVAC-focused activation tied to airflow-driven pressure changes. A caution: verify compatibility with your existing control board and relay setup.
- Best for: HVAC control integration with duct fans.
- Why selected: Established brand in HVAC air control, clear activation logic.
- Caution: Check control board compatibility and wiring requirements.
LEYILE Water Paddle Flow Switch
The Leyile paddle flow switch focuses on adjustable flow range and robust protection for indoor or outdoor use. It is suitable for water-based systems and environments where long service life and stable operation are desired. Best for: water heating or cooling lines that require an adjustable paddle sensor in varied environments. A caution: confirm chemical compatibility with the liquid in your system to avoid paddle degradation.
- Best for: Adjustable flow in water systems with outdoor or indoor exposure.
- Why selected: Adjustable flow range and durable protection.
- Caution: Verify liquid compatibility with the paddle material.

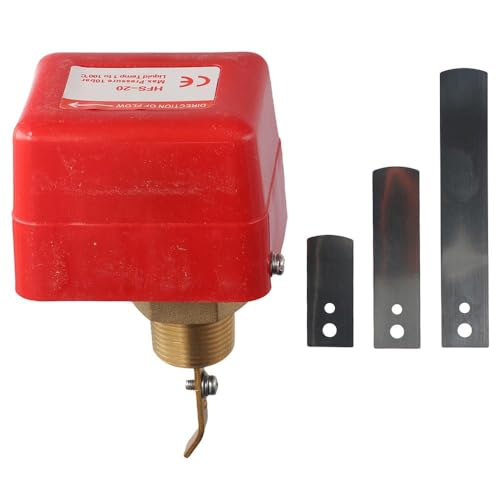

HOBBYIN Flow Switches
The HobbyIn line offers flow switches with adjustable control points for various fluids or air. Their design supports automatic activation when flow exceeds a set value, with repeatable action points for reliability. Best for: hobbyist projects or light-duty industrial demonstrations where adjustable flow sensing is beneficial. A caution: ensure the liquid or air type is within the switch’s specified range to avoid misreading or damage.
- Best for: Educational projects and light-duty systems needing adjustable flow sensing.
- Why selected: Adjustable switch point and repeatable action for stability.
- Caution: Use with compatible fluids and avoid corrosive liquids.
Buying Guide: Key Considerations for Adjustable Air Flow Switches
- What will you be switching? Air, water, or other liquids require different switch types (anemometer-based vs. diaphragm vane vs. paddle). Choose accordingly.
- Actuation range and accuracy. Look for adjustable ranges that match your system’s target pressure or flow and verify the repeatability of the switch.
- Electrical output type. Decide between normally open, normally closed, or SPDT (single-pole double-throw) outputs based on how you wire the control circuit.
- Connection size and threading. Ensure compatibility with your piping or ductwork (NPT, PT thread, DN sizes).
- Environmental protection. IP ratings and material choices (stainless steel, copper, etc.) affect longevity in humid or outdoor conditions.
- Wiring and mounting. Consider plug-in options for quick installs, or rigid mounting for permanent setups. Account for space constraints and ease of service.
- Safety and ratings. Do not exceed maximum pressures or temperatures specified by the manufacturer. Check electrical ratings for your control circuit.
FAQ
- What is an adjustable air flow switch best used for?
It is used to trigger equipment like fans or pumps when air flow or pressure reaches a set point, enabling automatic system control. - How do I choose between air and liquid flow switches?
Air switches are designed for gas flow and pressure changes; liquid switches are built for liquids and often have different temperature and corrosion considerations. - What does SPDT mean in a flow switch?
SPDT means a single pole with two throws, allowing a switch to energize one circuit while breaking another, enabling more complex control schemes. - Are there installation safety tips for these switches?
Yes. Ensure correct electrical wiring, use appropriate protection for damp environments, and verify fittings match pipe or duct sizes to avoid leaks. - Can these switches be used for DIY projects?
Yes, many are suitable for hobbyist and light commercial projects when the operating conditions fall within the specified ranges.
