Answering your search for a reliable AC disconnect switch, this guide highlights five top options that balance safety, ease of installation, and outdoor durability. These switches are ideal for residential HVAC work, mini-split systems, and outdoor condenser units. The best pick depends on whether you need a fused or non-fused design, single- or two-pole configurations, and outdoor-rated construction. Below is a quick summary table of the five products evaluated here.
| Product | Type | Voltage/Current | Best For | Key Benefit |
|---|---|---|---|---|
| ABB TF30RCP | Fused | 30A, 240V | Outdoor HVAC, single-phase | 10kAIC rating, weatherproof |
| Cambridge Non-Fused A/C Disconnect | Non-Fused | 60A, 240V | Heavy outdoor duty | Visible pullout, fast commissioning |
| LUORISE AC Disconnect Box | Non-Fused | 60A, 240V | Mid-range outdoor installs | Lockable latch, NEMA 3R |
| Suplevel 30A Fused A/C Disconnect | Fused | 30A, 240V | Mini-split and home HVAC | UL listed, pull-out with fuse-not-included |
| Generic 6 Pack AC Disconnect Boxes | Non-Fused | 60A, 240V | Multiple outdoor units or multiple zones | Durable pull-out design, weatherproof enclosure |
ABB TF30RCP Weatherproof Fused AC Disconnect Switch
The ABB TF30RCP is a 30A, 240V AC fused disconnect designed for single-phase operation in outdoor environments. It features a pull-out fuse design (fuses not included) for safe isolation during maintenance and an interrupt rating of 10kAIC for dependable disconnection in residential HVAC and similar setups. Built with NEMA 3R weather-resistant G90 galvanized steel, it offers corrosion protection and durable outdoor performance. Best for: outdoor HVAC installations where a clear, fused isolation is preferred and space is limited. Limitation: fuses are not included, so you must source the correct fuse type and rating for your system.

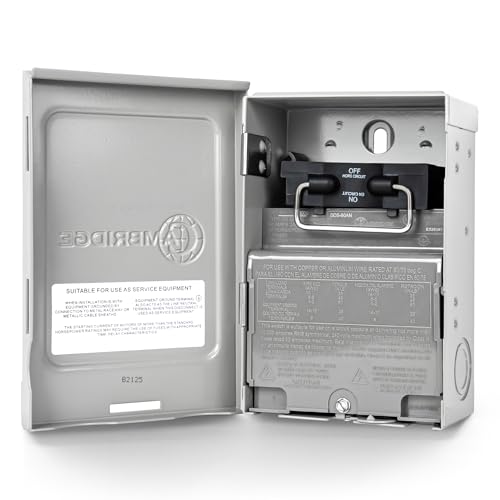

Cambridge Non-Fused A/C Disconnect 60 AMP
The Cambridge non-fused disconnect is rated at 60 amps, suitable for 240V AC with a NEMA 3R rainproof enclosure. The unit emphasizes visibility and safety with a pullout design that clearly shows an open circuit, preventing restarts. Fast commissioning and service are highlighted by its compact mounting and straightforward wiring path. Best for: technicians needing quick isolation at the unit with clear open-circuit indication. Limitation: non-fused design may require separate fusing for some circuits.
MUJURUR 2026 Upgrade 30 Amp Disconnect Box
This MUJURUR 30A disconnect box is a non-fused, NEMA 3R-rated enclosure designed for outdoor use. It supports 120V/240V circuits with a 30A maximum current and offers a wide wiring space to simplify installation. The spring-assisted handle allows rapid, safe switching. Best for: mid-size outdoor HVAC setups where quick disconnection is needed. Caution: ensure compatibility with your wiring gauge and insulation requirements, as high-temperature environments can affect wiring over time.
Generic 6 Pack AC Disconnect Boxes 60A Non-Fused
This set of six non-fused disconnect boxes provides robust outdoor-rated enclosures with a pull-out switch design for visible power control. Rated for 60A and 240V, these units are suitable for A/C units, condensers, heat pumps, and outdoor electrical applications. Best for: multiple outdoor units or zones where uniform disconnects are needed across locations. Limitation: non-fused design may require separate fusing for certain installations.
Suplevel 30 Amp Fused AC Disconnect Box
The Suplevel 30A fused disconnect uses a pull-out switch with a visible OFF position to confirm de-energization. It features a NEMA 3R outdoor metal box, pre-drilled knockouts, and a split design for flexible wiring. UL listed and designed for 120/240VAC applications. Best for: mini-split systems and home HVAC setups needing a fused protection scheme. Safety note: fuses must be sourced separately and matched to the load.
Buying Guide: How to Choose The Right AC Disconnect Switch
Key purchase considerations help buyers pick the right disconnect switch for outdoor HVAC setups. Use these practical questions to guide your selection.
- What is my system type and voltage? Most residential HVAC uses 120/240V single-phase. Match the disconnect’s voltage rating and current capacity to your unit.
- Fused vs. non-fused design: Do you need built-in overcurrent protection (fused) or a simple visible disconnect (non-fused)? Fused options require correct fuse types and ratings.
- Outdoor durability: Is NEMA 3R or equivalent weatherproofing essential for protection against rain, dust, and tampering?
- Ease of installation: Do you need pre-drilled knockouts, clear wiring paths, and a compact footprint for tight spaces?
- Security and safety: Should the unit be lockable or feature a forged OFF position to prevent accidental use?
- Maintenance and accessibility: Is a visible pull-out handle beneficial for quick servicing and verification at the unit?
Which Disconnector Type Fits Your Scenario?
- Best for minimal maintenance areas: Non-fused, weatherproof, pull-out designs with clear ON/OFF visibility.
- Best for critical protection: Fused disconnects with a high interrupt rating and UL/NEMA-rated enclosures.
- Best for multi-zone outdoor setups: A set of 60A non-fused disconnects for several outdoor units or zones.
Installation and Safety Tips
- Follow local electrical codes and, when in doubt, consult a licensed electrician.
- Verify conductor sizes and temperature ratings match the disconnect’s wiring allowances.
- Ensure the pull-out mechanism clearly indicates the circuit is de-energized before servicing.
FAQ
- What is the difference between fused and non-fused AC disconnects?
Fused disconnects provide built-in overcurrent protection via removable fuses; non-fused disconnects rely on external protection and focus on visible isolation. - Can all disconnects be used outdoors?
Only models with NEMA 3R or equivalent weatherproof ratings are designed for outdoor use. - Why would I choose a 60A disconnect?
A 60A rating accommodates many outdoor HVAC units and multi-zone outdoor installations while providing ample current capacity. - Is a lockable disconnect necessary?
Lockable features prevent unauthorized or accidental operation during maintenance, enhancing safety. - What maintenance is required for a disconnect box?
Periodically inspect seals, latches, and the pull-out mechanism for smooth operation; replace damaged enclosures promptly. - Are typical fuses readily available?
Fuse availability depends on the model and rating; always source the correct fuse type and rating specified for your unit.
