Answering the need for effective electrical protection, this guide highlights five top A/C breaker switches. Each product targets different setups—from residential panels to outdoor disconnects and DC applications. The selections emphasize overcurrent protection, reliable trip curves, and ease of installation. Best for homeowners, contractors, and technicians seeking dependable modular breakers with clear status indicators and durable housings.
| Product | Best For | Key Benefit |
|---|---|---|
| CHTAIXI AC Miniature Circuit Breaker, 32A | Residential/Small commercial, 120V-240V | Thermal magnetic trip with color indicator |
| AC Miniature Circuit Breaker, 40A, 2 Pole | Household panels needing higher current protection | Curve C magnetic trip for overload/short-circuit |
| CHONTIG 63A Mini DC Breaker | DC circuits, solar PV or DC distribution | DC arc-quenching system for safer operation |
| Chtaixi 3 Pole 240V, 32A | 3-phase or 480Y/277V style circuits | Thermal magnetic trip with clear status visuals |
| mxuteuk 5Pcs 5A Circuit Breakers | Low-current protection and modular projects | Push-to-reset, compact, universal quick-connect terminals |
CHTAIXI AC Miniature Circuit Breaker, 32 Amp
Best for general-purpose protection in 110–230V AC circuits. It uses Curve C magnetic trip for overload and short-circuit protection and features silver alloy contacts with a flame-retardant shell and a color indicator. This makes it suitable for residential panels and light commercial use where quick visual status helps. Best for homeowners and installers who want straightforward protection with clear status signals. Caution: verify compatibility with your panel’s DIN rail mounting and rated voltage before installation.
AC Miniature Circuit Breaker, 2 Pole 40 Amp
Best for higher-current residential or small commercial panels that require robust protection. With Curve C magnetic trip (5–10x rated current) and silver alloy contacts, this unit offers reliable overload and short-circuit protection. Choose this if you need stronger protection for circuits with higher demand. Limitation: ensure your panel supports a 40A, 2-pole configuration and compatible mounting.

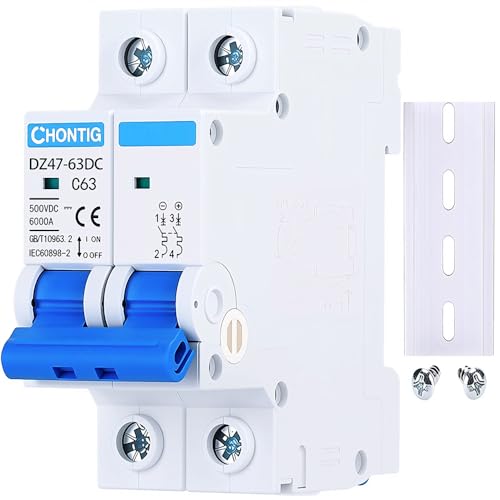

CHONTIG 63 Amp Miniature DC Breaker
Best for DC distribution and solar PV circuits where DC arc-quenching is important. It features a magnetic blow-out arc system to improve arc extinguishing efficiency, a flame-retardant housing, and visible status indicators (red=ON, green=OFF). Choose this when protecting DC loads and PV systems. Limitation: designed for DC environments; avoid using in mixed AC/DC panels unless specified by the manufacturer.
Chtaixi AC Miniature Circuit Breaker, 3 Pole 240V
Best for 480Y/277V style applications or three-pole protection in larger commercial setups. It uses Curve C with a 5–10x rated current magnetic trip and features silver alloy contacts and a flame-retardant shell with color indicators. Choose this when you need multi-pole protection and clear on/off status. Limitation: verify your panel supports 3-pole DIN rail mounting at the intended voltage.
SCHONTIG 63 Amp Miniature DC Breaker
Best for DC circuits needing strong protection and reliable arc control. The DC arc-quenching system and flame-retardant housing offer enhanced safety, with a visual status window. Best for solar or DC distribution in industrial or large-laboratory environments. Limitation: ensure the device voltage and current ratings match your DC system requirements to avoid misapplication.
Buying Guide
What voltage and current rating do I need?
Choose breakers rated for the voltage of your system (AC or DC) and the expected load. Common residential AC breakers are 120/240V, while DC breakers are used for solar or battery-backed circuits. Match the current rating to the maximum continuous load plus a safety margin.
What is a Curve C magnetic trip?
Curve C breakers trigger on moderate overloads and short circuits, typically 5–10 times the rated current. They suit general-purpose protection for most home and light commercial circuits. For highly inductive or highly resistive loads, confirm the curve type before selecting a unit.
DC arc-quenching considerations
DC arc quenching reduces arcing during interruption, increasing safety in DC distribution and solar applications. If protecting DC circuits, prefer breakers that specify a DC arc-quenching mechanism.
Mounting and compatibility
Check DIN rail compatibility and panel fit. Ensure the breaker dimensions, pole count, and termination style align with your panel or disconnect box. Outdoor use requires weatherproof or corrosion-resistant housings and proper enclosure ratings.
FAQ
- What is the difference between a 1-pole and 2-pole breaker?
1-pole protects a single hot leg; 2-pole protects two hot legs or a hot and neutral, suitable for 240V circuits. - Can I mix AC and DC breakers in the same panel?
No. Use breakers specifically rated for AC or DC circuits as mixing can lead to unsafe operation. - What does “Thermal Magnetic Trip” mean?
It combines thermal (overload) and magnetic (short-circuit) mechanisms for faster and more reliable tripping. - How do I know which amperage to choose?
Base it on the circuit’s anticipated continuous load plus a safety margin, following local electrical codes. - Are these breakers required for outdoor use?
Only if you’re placing them in weather-exposed locations; use outdoor-rated disconnects or enclosures where needed. - Do I need a 3-pole breaker for 277V systems?
Yes, for 480Y/277V or similar multi-phase systems, a 3-pole design is often required.
