Finding the right 45 degree duct takeoff helps ensure efficient airflow and easy installation in flat duct runs. This guide highlights five solid options that are well-suited for residential and light commercial HVAC projects. Each product is described with who it’s best for, why it was selected, and a potential limitation to consider. Use the quick comparison table below to decide which takeoff fits your ductwork size and application.
| Product | ||
|---|---|---|
| Duct Outlet 14 Inch 45 Degree Saddle Tap | 14 Inch Round Branch from flat duct | Large branch takes off from flat sheet metal; ideal for trunk lines feeding multiple runs |
| PATIKIL Duct Connector, 45 Degree Take Off 10″ | 6 Inch outlet from 10 Inch main | Mid-size branch for compact layouts; versatile for exhausts and vents |
| Duct Outlet 10 Inch 45 Degree Saddle Tap | 10 Inch Round Branch | Common mid-size branch; good all-purpose fit for flat ducts |
| Duct Outlet 6 Inch 45 Degree Round Saddle Tap (to 10 Inch) | 6 Inch branch from 10 Inch line | Small-to-mid branch in tight spaces; easy routing from larger ducts |
| Duct Outlet 9 Inch 45 Degree Saddle Tap | 9 Inch Round Branch | Mid-to-large branch for substantial air distribution |
Duct Outlet 14 Inch 45 Degree Saddle Tap
Size and design: Creates a 14 inch round branch takeoff from flat HVAC sheet metal ductwork. Flat duct application: Saddle base mounts to flat duct surfaces for supply, return, or branch duct connections. Crimped round collar: Round outlet includes a crimped collar for easier connection to matching round duct pipe or fittings.
Best for: Projects needing a large branch off a flat duct, such as feeding multiple branch lines from a main supply. This option is best for steady air distribution without adding extra fittings.
Limitations: Larger size means more cutting and crimping; ensure adequate room for a 14 inch branch in your layout.
PATIKIL Duct Connector, 45 Degree Take Off 10″ To 6″
Size and design: Outer diameter 6 inch; suitable for main pipe with diameter around 9.84 inch (250 mm). Constructed from galvanized iron sheet for rust and high-temperature resistance. Wide use: Suitable for connecting ducts in range hoods, dryers, extractors, and other ventilation equipment.
Best for: Systems needing a durable saddle connector with a mid-size branch in mixed-use spaces such as kitchens or laundry rooms.
Limitations: May require precise measurement to ensure a clean fit with your existing main duct; check compatibility with adjacent fittings.
Duct Outlet 10 Inch 45 Degree Saddle Tap
Size and design: Creates a 10 inch round branch takeoff from flat HVAC sheet metal ductwork. Flat duct application: Saddle base mounts to flat duct surfaces for supply, return, or branch duct connections. Crimped round collar: Round outlet includes a crimped collar for easier connection to matching round duct pipe or fittings.
Best for: Standard mid-size feeds where a reliable 10 inch branch is needed for additional rooms or zones. This option balances size and ease of installation.
Limitations: Large enough to require careful routing; verify clearance for the 10 inch branch in ceiling or wall cavities.

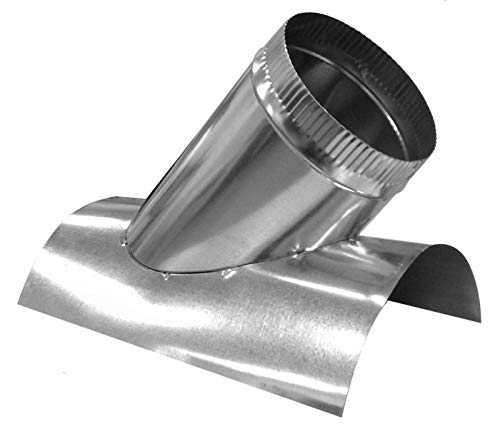

Duct Outlet 6 Inch 45 Degree Round Saddle Tap
Size and design: Designed to create a 6 inch angled branch connection from a 10 inch round duct line; made from 26 gauge galvanized steel. Curved saddle base: Radius-style saddle base sits on round ductwork for a secure branch takeoff connection. Galvanized steel construction: Durable and corrosion-resistant for HVAC use.
Best for: Smaller branches where space is tight or where a 6 inch takeoff is sufficient to service a single room or zone. It’s a solid choice for retrofit work in existing duct runs.
Limitations: Not suitable for very large air flows; plan for the total airflow before adding multiple taps on a single run.
Duct Outlet 8 Inch 45 Degree Saddle Tap
Size and design: Creates an 8 inch round branch takeoff from flat HVAC sheet metal ductwork. Flat duct application: Saddle base mounts to flat duct surfaces for supply, return, or branch duct connections. Crimped round collar: Round outlet includes a crimped collar for easier connection to matching round duct pipe or fittings.
Best for: General purpose mid-size branch, suitable for distributing air to additional rooms or equipment in a single-floor layout. Good balance of size and ease of installation.
Limitations: Ensure wall or ceiling space can accommodate the 8 inch branch route; verify ceiling clearance before cutting.
Duct Outlet 9 Inch 45 Degree Saddle Tap
Size and design: Creates a 9 inch round branch takeoff from flat HVAC sheet metal ductwork. Flat duct application: Saddle base mounts to flat duct surfaces for supply, return, or branch duct connections. Crimped Round Collar: Round outlet includes a crimped collar for easier connection to matching round duct pipe or fittings.
Best for: When a slightly larger branch is needed than 8 inches but still fits a compact layout. Suitable for distributing air to multiple zones from a central trunk.
Limitations: Slightly larger footprint; confirm clearances in tight mechanical spaces before installation.
Buying Guide: Key Purchase Considerations
- Branch size vs. main duct: Match the branch diameter to your load requirements and available space. Larger branches move more air but require more space for routing.
- Material and finish: Galvanized steel offers rust resistance and durability for indoor and outdoor exposure. Crimped collars simplify connections to round ducts.
- Flat vs. round duct compatibility: Some takeoffs are designed specifically for flat surfaces; others fit round main ducts. Check your duct geometry before purchase.
- Installation practicality: Consider how easy it is to access the takeoff location, the need for sealing, and whether you’ll need extra fittings or reducers.
- Airflow and system balance: Adding multiple takeoffs can affect airflow. Plan as part of a broader zoning and balancing strategy to avoid under- or over-pressurization.
FAQ
- What is a 45 degree duct takeoff best used for?
It provides a angled branch from a main duct, typically used to distribute air to adjacent spaces without sharp turns that could impede airflow. - Should I choose a flat-duct or round-duct takeoff?
Flat-duct takes off from flat surfaces and is suited for sheet metal runs; round-duct takeoffs are used when the main run is circular or already round. - Can I install multiple takeoffs on one main duct?
Yes, but you should assess total airflow and balance to prevent pressure drops and uneven room temperatures. - Do these products require professional installation?
Installation generally benefits from HVAC experience, especially to ensure proper sealing and fit, but some handy homeowners can install smaller takesoffs with proper tools. - Are there limitations to 14 inch or 10 inch branches?
Larger branches create more significant airflow changes and require more space; measure carefully against available ceiling height and wall clearance.
