Answer: For a 10×10 ceiling or wall installation, these 10×10 register boxes are designed to connect square space with round HVAC ductwork, enabling efficient air flow in residential or light commercial systems. The top picks below are best for straightforward ceiling-to-duct transitions, with variations in round collar size, depth, and material durability. Choose this guide if you need durable galvanized steel, easy installation, and clear compatibility with either 6″ or 8″ or 10″ duct connections. The table summarizes core details to compare at a glance.
| Product | Brand | Best For |
|---|---|---|
| Duct Outlet 10″ x 10″ Ceiling Box, w/ 10″ Round Collar | Duct Outlet | 10″ collar for main 10″ duct transitions; reliable for square-to-round connections |
| Duct Outlet 10″ x 10″ Ceiling Box, w/ 8″ Round Collar | Duct Outlet | 8″ duct transitions; versatile in mixed duct systems |
| HVAC Premium Side Ceiling Box | 10″ X 10″ X 6″ | HVAC Premium | 90-degree transitions from round to square diffuser; 6″ depth |
| HVAC Premium Side Ceiling Box | 10″ X 10″ X 8″ | HVAC Premium | 8″ depth for thicker walls or deeper ceiling installations; 8″ duct compatibility |
| PATIKIL HVAC 90 Degree Ceiling Register Box | PATIKIL | 10×10 ceiling diffuser with 6″ round duct collar; robust galvanized steel |
Duct Outlet 10″ x 10″ Ceiling Box, w/ 10″ Round Collar
Designed to connect ceiling registers, vents, and diffusers to round HVAC ductwork for supply or return air applications. Made from durable galvanized steel for dependable use in residential and light commercial HVAC duct systems. Includes a round collar connection to attach to round ductwork and help transition airflow into the ceiling box.
Best for: installations needing a 10″ round collar to bridge square ceiling openings with 10″ ductwork.
Why selected: Direct compatibility with 10″ round ducts simplifies layout and air flow. The galvanized steel offers durability for standard environments.
Caution: Check ceiling thickness and collar fit to avoid airflow restrictions.
Duct Outlet 10″ x 10″ Ceiling Box, w/ 8″ Round Collar
Designed to connect ceiling registers, vents, and diffusers to round HVAC ductwork for supply or return air applications. Made from durable galvanized steel for dependable use in residential and light commercial HVAC duct systems. Includes a round collar connection to attach to round ductwork and help transition airflow into the ceiling box.
Best for: projects requiring an 8″ round collar to fit mid-size round ducts.
Why selected: Offers a practical collar option for common 8″ duct runs.
Caution: Ensure collar size matches your ductwork to prevent leaks.
HVAC Premium Side Ceiling Box | 10″ X 10″ X 6″
Size: 10″ X 10″ X 6″; Compatible with 10″ duct systems. This sheet metal register box provides a 90-degree connection from round pipe to a square ceiling diffuser. Galvanized steel with crimped ends enables easy fitting and secure connection.
Best for: shallow ceiling spaces and 10″ duct layouts where a compact 6″ depth is preferred.
Why selected: Reliable for standard 10″ round-to-square transitions in tighter ceilings.
Caution: Deeper boxes may be necessary for taller diffusion assemblies; verify ceiling clearance.
HVAC Premium Side Ceiling Box | 10″ X 10″ X 8″
Size: 10″ X 10″ X 8″; Compatible with 8″ duct systems. It provides a 90-degree transition from round pipe to a square ceiling diffuser, with galvanized steel and crimped ends for secure fitting.
Best for: installations where an 8″ duct connection is required alongside a 10″ ceiling opening.
Why selected: Balances depth and duct compatibility for medium-sized runs.
Caution: Check that 8″ duct is used adjacent to the diffuser for optimal airflow.

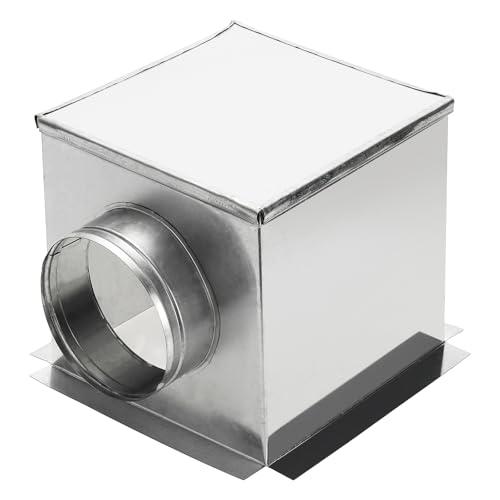

PATIKIL HVAC 90 Degree Ceiling Register Box
Specification: 10 x 10″ inner size; 6″ round duct collar; galvanized steel construction; 6″ collar is suitable for standard 6″ round ducts. Smooth surface and sealing aid tight performance. Designed for transitions between round pipe and square ceiling diffuser; suited for commercial, residential, and industrial ventilation.
Best for: 6″ round duct connections in 10×10 ceiling diffusers.
Why selected: Uniform design that supports varied diffuser configurations while remaining corrosion-resistant.
Caution: Confirm collar and diffuser compatibility with your ceiling system before installation.
Buying Guide: Key Considerations for 10×10 Register Boxes
- Collar size compatibility: Match the round collar (6″, 8″, or 10″) to your ductwork to ensure a proper seal and airflow.
- Depth and space: Depth options (6″ or 8″) affect ceiling clearance and diffuser fit. Choose deeper boxes only if there is sufficient ceiling cavity.
- Material and durability: Galvanized steel provides corrosion resistance and sturdy support in typical HVAC environments.
- Connection type: Many boxes are designed for a 90-degree turn from round duct to a square diffuser. Ensure the design meets your layout needs.
- Installation considerations: Look for crimped ends and easy-fit features that simplify alignment and sealing during mounting.
FAQ
- What is a 10×10 register box used for?
It is a ceiling or wall mounted box used to connect a 10″ space to round ductwork, enabling proper airflow from the main duct into a diffuser or vent.
- Which collar size should I choose for my ductwork?
Choose a collar that matches your round duct diameter (commonly 6″, 8″, or 10″). A proper fit reduces air leakage and improves efficiency.
- Are 10×10 boxes suitable for both residential and light commercial applications?
Yes, most listed options are designed for residential and light commercial HVAC, with galvanized steel construction for durability.
- Do these boxes require professional installation?
They can be installed by a capable DIYer with basic HVAC ductwork knowledge, but professional installation may be recommended for complex layouts or high-stakes systems.
- What should I check before buying?
Check collar size, depth, compatibility with your diffuser, ceiling clearance, and whether the box supports the desired airflow path.
- Can I mix different collar sizes in the same project?
Yes, but plan layout to ensure consistent airflow and airtight seals where each connection occurs.
